Printed Circuit Boards 100% Fabricated and Assembled in Australia!

Loading a PCB typically involves three different areas with different methods of component preparation and different placement techniques.

Our Automatic Optical Inspection (AOI) uses a 3-CCD color camera and other cameras to visually inspect a wide range of defects on a PCB.

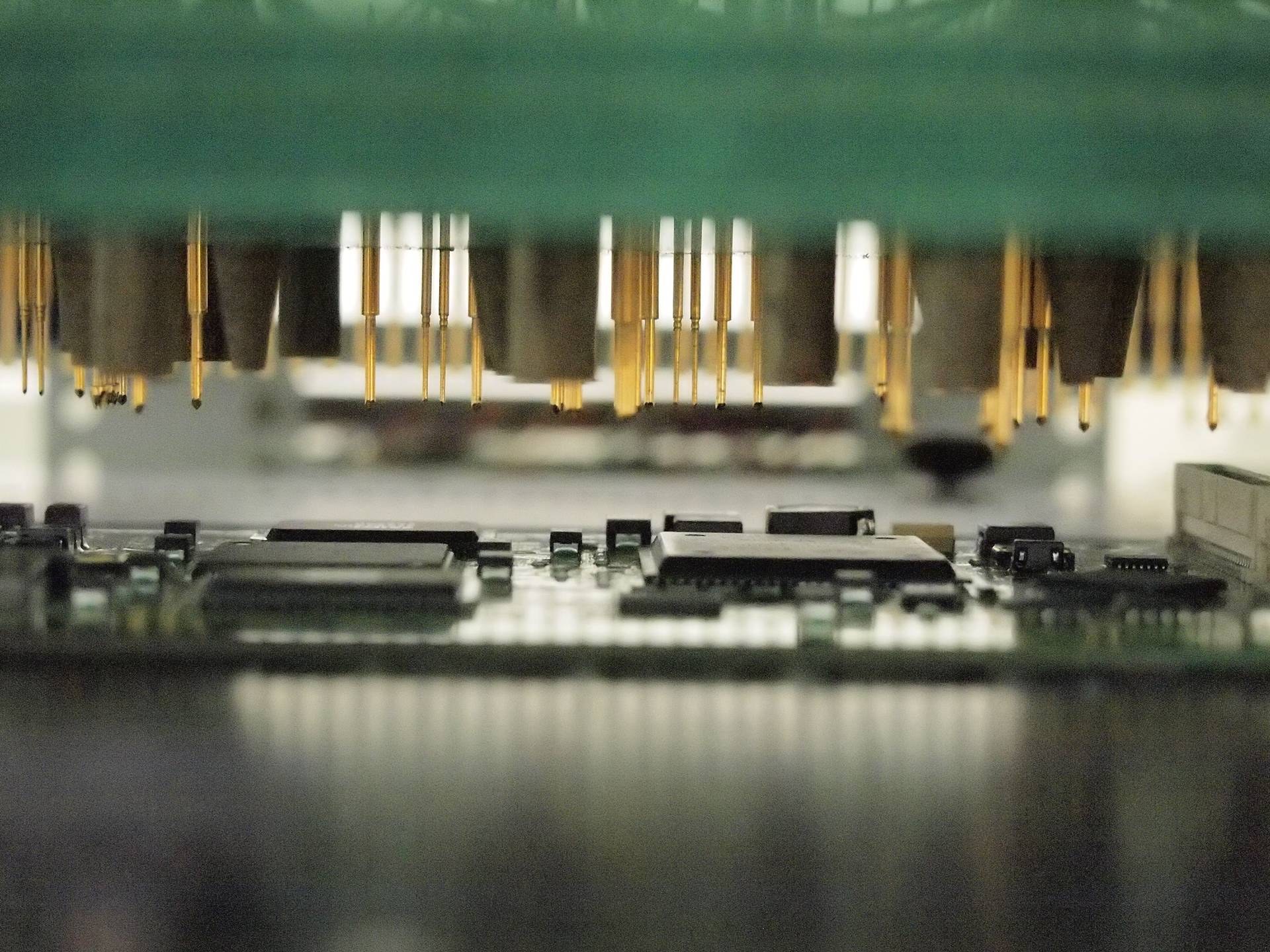

In-Circuit Testing (ICT) involves the use of a bed of nails jig to gain access to various nodes on an assembled Printed Circuit Board so that a variety of tests may be performed on the assembly.

Conformal coating of PCBs is normally required when the assembly is destined for a harsh environment.

Welding thermoplastic materials by means of ultrasonics has quickly become an established and simple application of this technology.

Low Melt Overmoulding is a simple method of waterproofing electronic assemplies and also providing mechanical support and strain relief.

A Production ready PCB must take into account the various machine automated processes it will undertake during the manufacturing process.

A production PCB is normally panelised so as to accomodate the mechanised transport systems used in the various production stages. These will include, Pick & Place, Through Hole Solder, Automated Optical Inspection and Conformal Coating.

Components to be loaded on PCBs are divided into 3 separate areas. Surface Mount components, Through Hole components and Custom components.
